RGT Challenger PRO – Equipped with FOC Brushless Power System

Since its launch at the end of 2022, the RGT “Challenger” has gained widespread recognition in the market for its powerful configuration and outstanding performance. To further refine and enhance product performance, RGT has introduced the new FOC upgraded version, the “Challenger PRO,” to better meet market demands. The upgraded “Challenger PRO” features a Hobbywing FOC brushless system specifically designed for crawlers (WP Fusion BL SYS for Crawler-540Spec-RTR). It utilizes Field-Oriented Control (FOC) technology, providing strong low-speed torque and excellent linearity. The motor operates smoothly and quietly, offering superior waterproof and dustproof performance, making it capable of handling various weather conditions and terrains with ease.

Compared to the standard version, the PRO upgrade retains key features such as portal axle structure, two-speed transmission, DIG transmission disconnect function, front-wheel drive, and four-wheel drive modes, as well as a winch function. Additionally, the PRO version introduces an automatic rear anti-roll bar unlock design. The vehicle is equipped with five servos, all featuring metal powder gears. The steering servo has been upgraded to a 35KG full-metal servo. The front steering knuckle cover is made from brass for added weight distribution, and the new full-metal shock absorbers feature a nano-coating process on the shock shafts, ensuring greater hardness and smoother suspension performance.

EX86170PRO

Exterior Design:

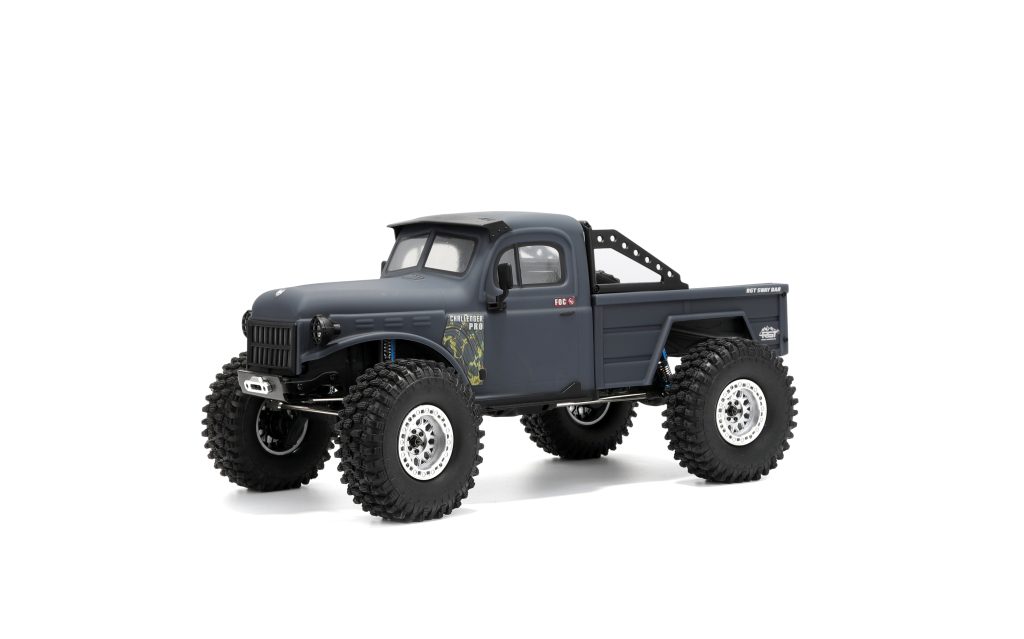

The upgraded “Challenger PRO” retains the classic body design while adding cockpit and truck bed decorations. The body is coated using a multi-layer spray process, improving durability and reducing paint wear due to friction. The body is further reinforced with internal and external roll cage supports, offering strength comparable to hard-shell plastic.

FOC System Features:

  • Integrated ESC and motor design, significantly reducing size and weight for a cleaner chassis layout.
  • Strong low-speed torque and superior low-speed linearity, with quiet and smooth motor operation.
  • IP67-rated waterproof and dustproof system, providing excellent performance in all weather and terrain conditions.
  • Intelligent torque output and speed closed-loop control, offering cruise control and hill descent functions similar to real vehicles.
  • Multi-level drag brake adjustment, with maximum drag brake force approximately twice that of standard brushless systems, providing exceptional hill-holding capability.
  • Multiple protection features, including low-voltage protection, overheat protection, throttle signal loss protection, and stall protection.
  • Supports ESC parameter configuration using an LED programming card, with a dedicated parameter setting interface integrated into the switch for easier adjustments.

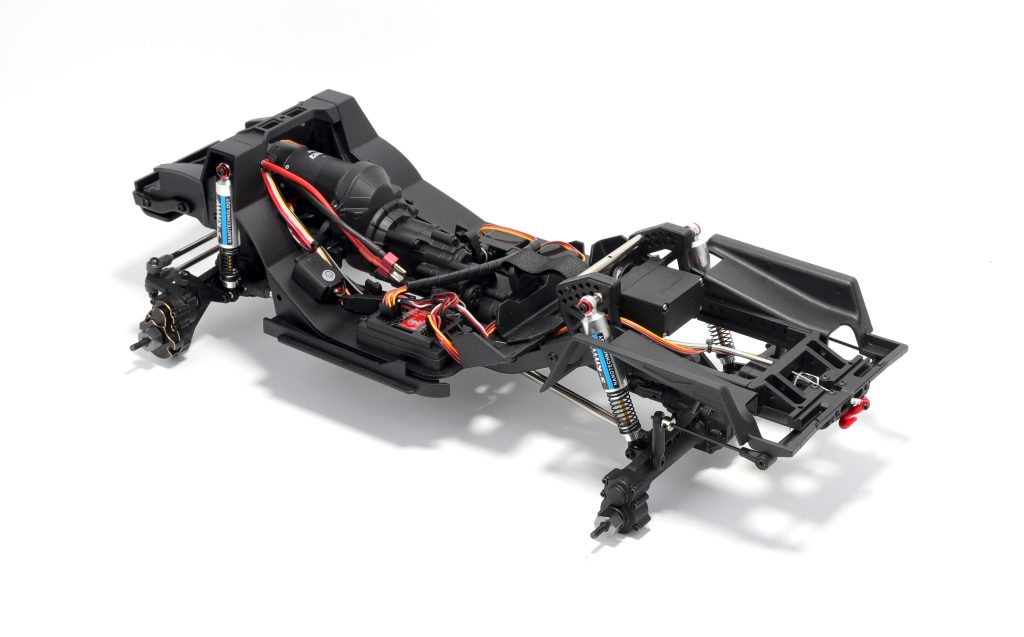

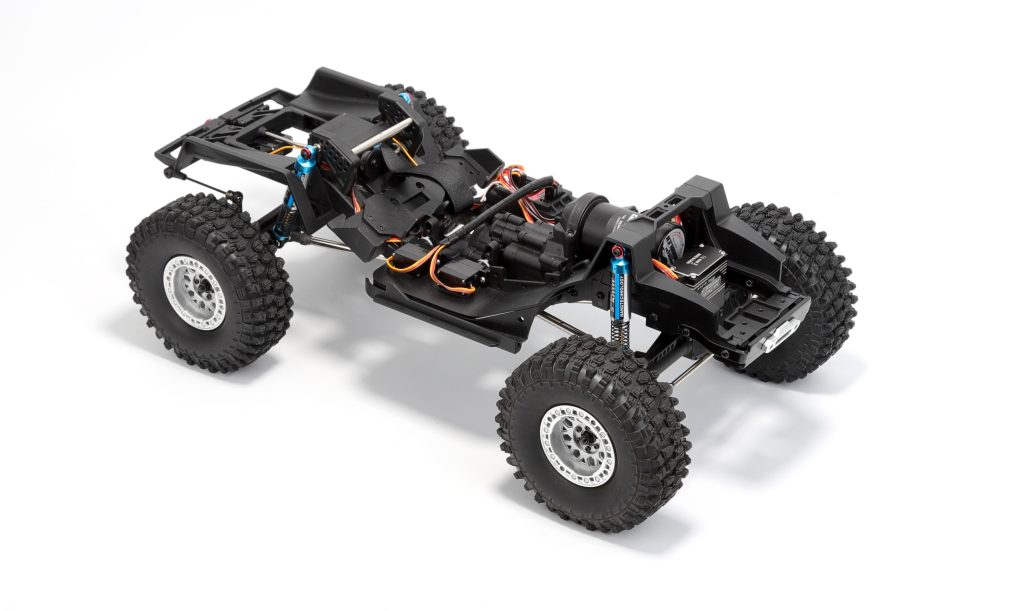

Transmission System:

  • Low center of gravity design with metal gears and a 45# steel reduction shaft, improving durability and reliability.
  • Two-speed high and low transmission, with a DIG rear axle lock function for tighter turning radius and front-wheel drive disconnect capability.
  • CNC machined motor mount made from 6061 aluminum, compatible with 17-21T pinion gears.

Front and Rear Axle Structure:

  • Portal axle design enhances ground clearance.
  • The axle housing gears feature CNC machined steel helical gears, raising the height of the front and rear drive shafts.
  • The portal reduction gears are made of powdered steel, with brass front steering knuckle covers for improved weight distribution.
  • The axle-mounted steering servo structure uses impact-resistant nylon for the C-hub and steering knuckles.

Servos:

  • Equipped with 5 waterproof 7.4V metal gear servos.
  • Steering servo upgraded to a 35KG full-metal servo.
  • 25KG 360-degree metal winch servo with a hidden conduit steel cable design. The stock winch cable can extend up to 90CM, supporting up to 15KG of pulling force.

Additional Features:

  • Remote-controlled electric unlock anti-roll bar design, enhancing turning stability when locked, reducing body roll, and increasing suspension travel when unlocked for improved off-road capability.
  • Realistic full-metal shock absorbers with nano-coated shock shafts for increased durability and smoothness.
  • 1.9-inch electroplated wheels with a realistic design, with wider and deeper-treaded tires for improved crawling performance.
  • Full-metal gears and high-precision sealed bearings, along with steel central CVD shafts, ensuring smooth drivetrain performance without concerns of gear stripping or axle breakage.

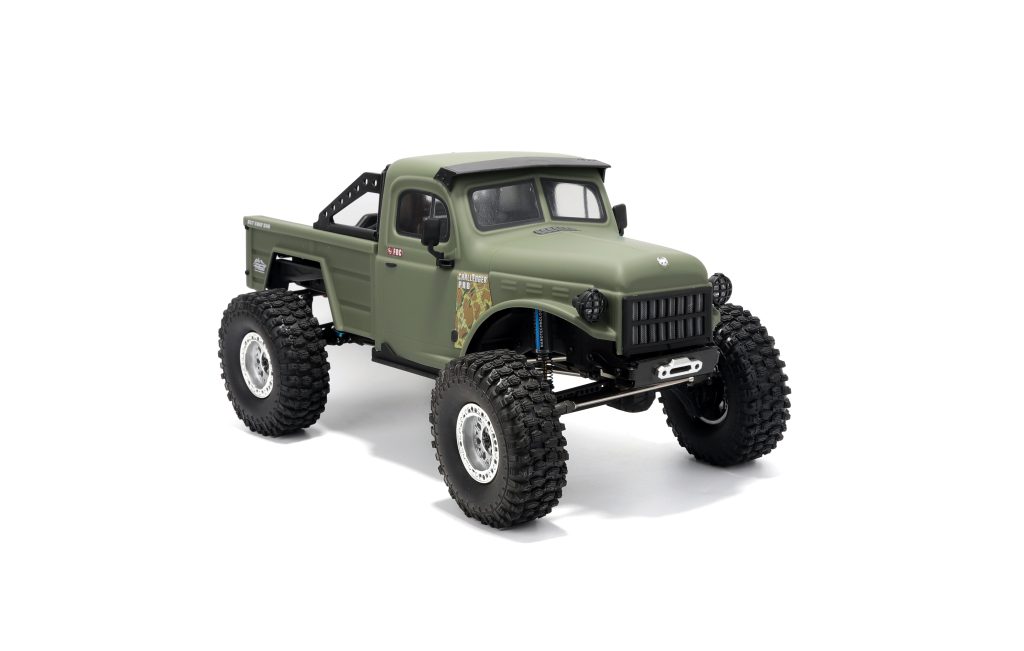

  • The PRO version features a new matte paint finish, providing scratch resistance and easy cleaning. The new version also includes interior cabin details and truck bed decorations, available in two colors: Dark Rock Gray and Army Green.

RGT “Challenger PRO” Specifications:

  • Model Number: EX86170PRO
  • Product Name: Challenger
  • Description: 1/10 Electric Off-Road Vehicle
  • Length: 502mm
  • Wheelbase: 313mm
  • Width: 258mm
  • Height: 246mm
  • Ground Clearance: 70mm (chassis), 54mm (axle housing)
  • Drive Modes: Front-wheel drive and four-wheel drive
  • Departure Angle: 30°
  • Approach Angle: 80°
  • Front/Rear Speed Ratio: 6.60%
  • Departure Angle: 70°
  • Wheels (Diameter/Width): 120mm / 45mm
  • Gear Ratio (Low): 49.8:1 (front), 53:1 (rear)
  • Gear Ratio (High): 26.3:1 (front), 28:1 (rear)
  • Gears: Full metal
  • Motor/ESC: Integrated FOC system
  • Motor: Brushless / 1800kv
  • ESC: Brushless / 40A
  • Steering Servo: High-pressure full-metal 35KG servo
  • Battery Recommendation (not included): 2S-3S LiPo or 7.2V NiMH
  • Winch Servo: 360-degree digital metal gear 25KG
  • Winch Cable: 0.8mm diameter, 90CM long
  • Remote/Receiver: 2.4G / 8CH
  • Auxiliary Servo: 7.4V / 9G (metal powder gears) 3P
  • Battery Recommendation (not included): 2S-3S LiPo or 7.2V NiMH
  • Body Color (Matte): Dark Rock Gray, Army Green

RGT 1/10 Rock Crawler CHALLENGER

RGT high performance 1/10 Rock Crawler, the CHALLENGER. RTR product, it brings players a smoother climbing experience.

CHALLENGER adopts portal axle structure, two-speed transmission, DIG system, rear axle locking function, and the freely switched front-wheel drive and four-wheel drive mode, 6.6% overspeed ratio between front and rear wheels , and a reverse drive system design, focusing on climbing performance.

CHALLENGER has a truck-shaped appearance with two-section conbinated soft and hard shells, which can fully reflect the powerful climbing performance effect and modification needs. It’s also equipped in factory with winch unlock function, rear axle housing Anti-roll bar, spare tire, LED light group , 8-channel transmitter and other entertainment highlights.

RGT CHALLENGER equipped with 35T RC550 super torque motor, Hobbywing WP-1060 ESC, 25KG all-metal gear waterproof servo. ONE MORE THING, a 25KG -360 degree winch can stretch up to 90CM that installed on the chassic rear suspesion.
